Schools and colleges operate differently to most construction sites. You can’t just close them down for weeks whilst work happens. Students need to learn, staff need to work, and the building needs to stay secure and operational throughout. When Benchill Primary School in Wythenshawe needed 150 metres of failing box gutters replaced, they didn’t have the luxury of extended downtime — and neither did we.
Over recent years, we’ve completed roofline projects across nursery, primary and secondary schools, further education colleges and universities throughout the North West. From Benchill Primary’s aluminium box gutter replacement to Sir John Deans College in Nantwich requiring 300x300mm commercial-scale systems, education facilities present specific challenges that demand experienced contractors who understand the operational constraints.
Benchill Primary School, Wythenshawe: When Box Gutters Fail
Benchill Primary School faced a common problem with an uncommon solution. Their existing coated steel box gutters — approximately 150-160 linear metres around the building — had reached the end of their serviceable life. Coated steel systems can perform well initially, but once the coating fails and corrosion begins, deterioration accelerates. Water ingress from failed guttering isn’t just a maintenance issue in schools — it’s a safeguarding concern affecting children’s learning environment.
We replaced the failing steel systems with 150x150mm aluminium box gutters throughout.
Why Aluminium Box Gutters for Schools?
Box gutters handle significantly higher water volumes than standard domestic guttering. At 150x150mm, these systems offer substantial capacity — essential for large roof areas on school buildings where inadequate drainage creates problems quickly.
Aluminium provided the right solution for Benchill Primary:
Long-term performance — Schools need systems that last decades with minimal maintenance. Aluminium doesn’t rust, doesn’t require repainting and maintains performance year after year.
Capacity and reliability — 150x150mm box gutters handle the substantial water flow from large school roof areas, with margins built in for heavy rainfall events.
Installation efficiency — Working around school operations required careful coordination to minimise disruption to students and staff.
Future maintenance burden — Once properly installed, aluminium box gutters require minimal intervention. For schools with constrained maintenance budgets, that long-term cost-effectiveness matters.
Commercial-scale guttering isn’t just bigger domestic systems — it demands different technical approaches, specialist equipment and experience working to commercial specifications.

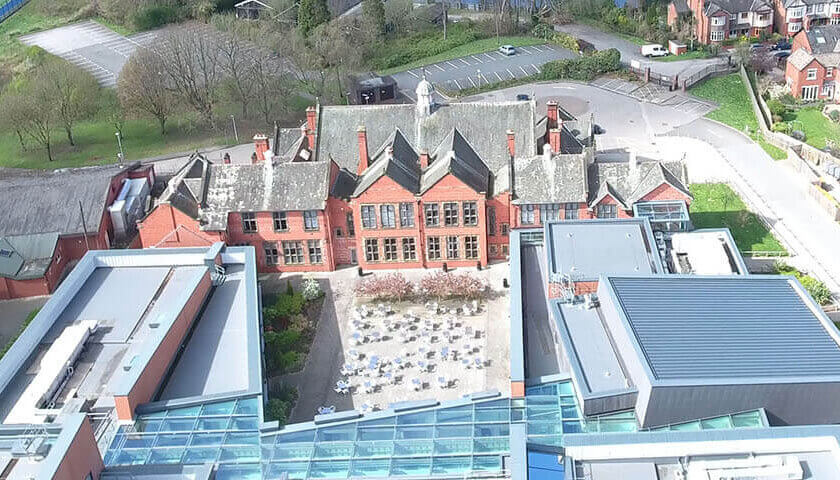

Sir John Deans College, Nantwich: Serious Capacity
When Sir John Deans College needed rainwater systems, the specification called for 300x300mm box gutters — substantially larger than Benchill Primary’s already-generous 150x150mm systems. These are commercial-scale drainage solutions handling significant water volumes from extensive roof areas.
The previous steel gutters had rotted from the inside out — a common failure mode where internal corrosion goes undetected until systems fail catastrophically. The scale of the replacement had to match the existing systems, even though technically only 200x200mm would have been needed. Those massive flat roofs demanded serious drainage capacity.
At 300x300mm, we’re talking about capacity roughly 9 times that of standard residential guttering. These aren’t systems you pick up at a builder’s merchant — they require:
- Specialist fabrication capability
- Commercial-scale installation equipment
- Understanding of flow calculations and drainage design
- Experience with structural loadings and substrate requirements
Our scope at Sir John Deans included the 300x300mm box gutter systems plus 200 linear metres of fascia-soffit installation throughout. The project took 10 days to complete.
The full roofline package approach matters in education facilities. When you’re already working at height with equipment on site, coordinating multiple trades and working around college operations, it makes sense to address the complete roofline system — guttering, downpipes, fascia and soffit — in a single, properly planned programme.
St Mary’s Pre-School, Worksop: Full Roofline Replacement
St Mary’s Pre-School in Worksop required comprehensive roofline works: joinery substrate replacement, fascia-soffit installation, and complete rainwater systems. The specification was straightforward — white aluminium throughout, creating a clean, maintained appearance.
But “straightforward specification” doesn’t mean simple execution. The work involved:
Substrate joinery — Fascia and soffit systems need solid timber substrates. We ripped off the existing failed systems and addressed the rotted timber substrate beneath. We installed treated timber appropriate for external exposure, creating secure fixing points for the visible roofline systems.
Timber-out, aluminium-in — Replacing traditional timber fascia with aluminium requires understanding substrate requirements, expansion characteristics and fixing methodologies that differ from timber-to-timber installations.
Decorative detailing — The pre-school had decorative timber beading/pelmet detailing on the bottom of the soffit that had rotted. We replaced this with new fascia-soffit maintaining the decorative character appropriate for the building, complete with 150mm half-round fascia brackets.
Colour specification — White aluminium throughout provided the clean, institutional appearance appropriate for educational facilities. Polyester powder coating ensures long-term colour retention without the maintenance burden of painted timber.
The project took approximately one week to complete, working around the pre-school’s operational hours.
Lache Primary School, Chester: After-Hours Efficiency
Lache Primary School in Chester presented a specific challenge: work needed to happen outside regular school hours to avoid disrupting students and staff. We worked 4.5-hour shifts after school closed, completing 150 linear metres of roofline in just 5 days.
The scope involved:
- Ripping off existing failed systems
- Making good any joinery work
- Installing new fascia and gutters throughout
This project was significant enough that Rainmen’s Managing Director was on the tools — something he genuinely enjoyed. It demonstrates our commitment to difficult projects: when the constraints are tight and the schedule is compressed, leadership gets involved directly.
Working after school hours demands:
- Efficient setup and pack-down within compressed windows
- Productive use of limited time on site
- Minimal noise and disruption for surrounding residential areas
- Quality work despite time constraints

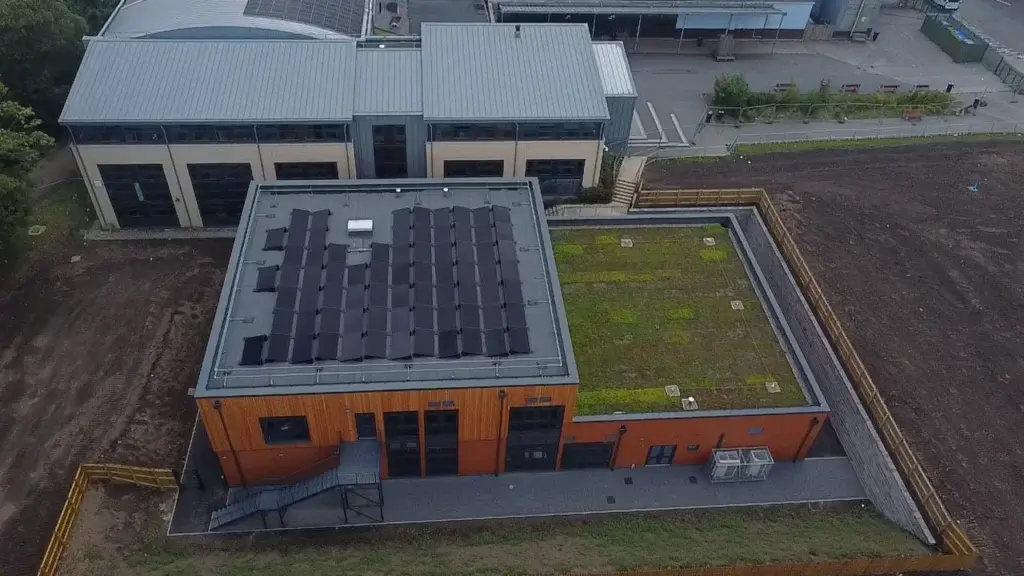

Bradford University and Immanuel College: Repeat Business
Bradford University and Immanuel College represent ongoing relationships with education sector clients. At Immanuel College, we installed aluminium windowsills, hoppers and downpipes on a new building — demonstrating capability beyond traditional guttering to encompass complete external drainage and trim packages.
Repeat business in education facilities proves something important: quality work, delivered to schedule, with minimal disruption, leads to further commissions. Universities and colleges don’t rehire contractors who create problems.
Sandbach High School & Sixth Form College: Leisure Centre Building
At Sandbach High School & Sixth Form College, the leisure centre building required aluminium fascia-soffit, hoppers and rainwater pipes with flush joint systems. Sports and leisure facilities demand robust drainage capable of handling the water volumes from large roof areas, delivered to standards that ensure long-term reliability with minimal maintenance.

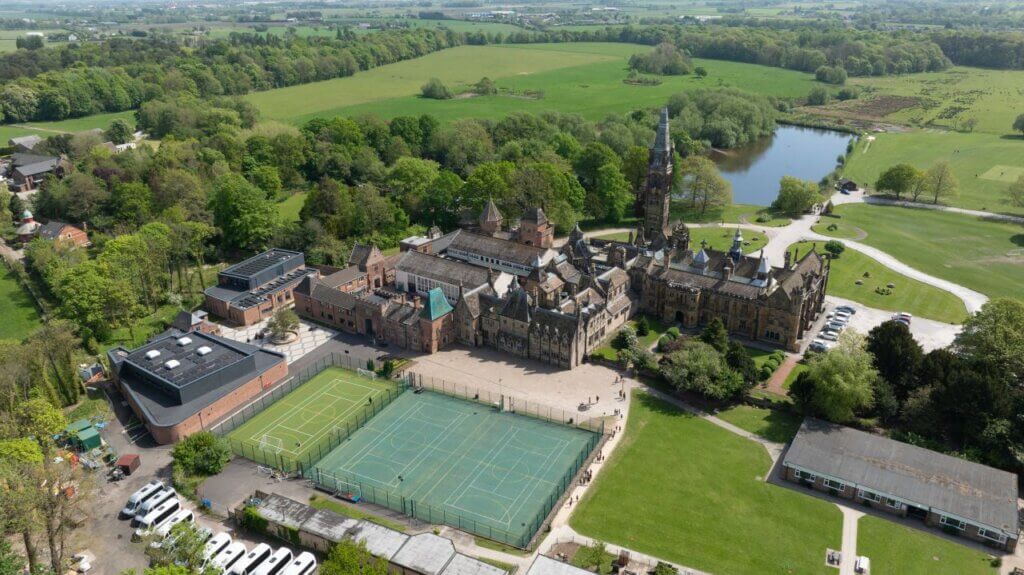

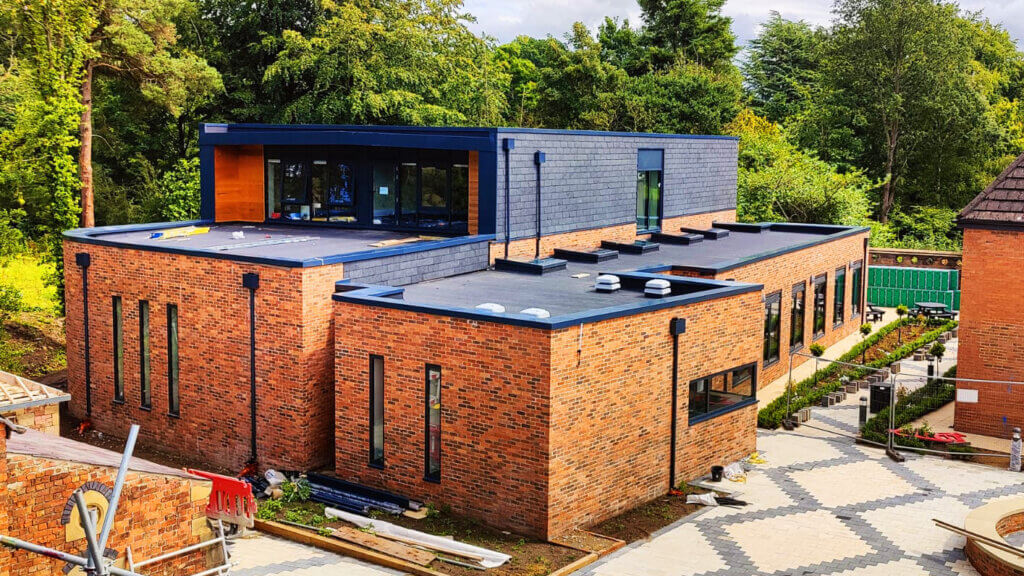

Scarrisbrick Private School: Theatre Facilities
Scarrisbrick Private School’s new-build theatre facilities required rainwater systems and cappings throughout. New-build projects in education demand coordination with main contractors, programme delivery to fixed timelines and systems that meet architectural specifications whilst delivering long-term performance.
Education Sector: Why It’s Different
Schools and colleges aren’t like other commercial projects. They present specific operational constraints that contractors must understand and respect:
Term-time working — Scheduling depends on the project. Many of our education projects happen during school holidays, creating compressed timelines where delays aren’t acceptable. Others are phased across term-time with specific restrictions on working hours and access.
Safeguarding requirements — Every contractor working on school sites needs appropriate DBS checks, understanding of safeguarding policies and respect for controlled access requirements. Children’s safety comes before construction convenience. All our team members working on education sites are DBS checked.
Minimal disruption — Schools can’t just shut down whilst work happens. Lessons continue, exams happen, children need safe access to buildings. Work must be planned to minimise noise, restrict access appropriately and avoid impeding school operations.
Budget constraints — Education budgets are tight. Schools need systems that deliver value through long-term performance, not just low initial cost. Whole-life costing matters more than first-price comparisons.
Maintenance considerations — Many schools have limited maintenance capacity. Systems need to be genuinely low-maintenance, not just marketed as such. “Maintenance-free” claims don’t help when reality proves otherwise.
Box Gutters: When Standard Systems Aren’t Enough
Both Benchill Primary and Sir John Deans required box gutter systems because standard residential guttering simply doesn’t provide adequate capacity for large educational buildings.
Box gutters offer:
Substantially higher capacity — 150x150mm systems handle roughly 3-5 times the water volume of standard 115mm domestic guttering. 300x300mm systems scale up from there.
Commercial performance — These are engineered drainage systems designed for buildings where failure creates significant problems for many people.
Architectural integration — Box gutters can be concealed within rooflines or designed as architectural features, depending on the building’s design intent.
Long-term reliability — In aluminium, these systems deliver decades of performance. No rust, no coating failure, no premature deterioration.
Installing commercial-scale box gutters requires:
- Partner relationships with specialist manufacturers with the fabrication capability for non-standard sizes
- Understanding of structural loadings and substrate requirements
- Specialist equipment for handling and installing large-section systems
- Experience with flow calculations and drainage design
- Quality control throughout to ensure weathertight, long-lasting installation
Material Choices: What Works in Education
Across our education projects, we’ve worked with:
Aluminium box gutters (Benchill, Sir John Deans) — Commercial capacity, long-term performance, minimal maintenance. When you need serious drainage capability, aluminium delivers.
Aluminium fascia and soffit (St Mary’s, Sir John Deans, Sandbach, Lache Primary, Scarrisbrick) — Clean appearance, no maintenance burden, decades of reliable performance. Better than uPVC for longevity, better than timber for maintenance requirements.
Supporting joinery (St Mary’s, Lache Primary, others) — The timber substrate work that makes everything else possible. Treated timber appropriate for external exposure, installed to provide secure fixing for visible systems.
Aluminium windowsills, hoppers and downpipes (Emmanuel College, Sandbach) — Complete external drainage and trim packages that integrate with architectural specifications.
The common thread: materials that deliver long-term performance with minimal ongoing cost. Schools can’t afford systems that need replacing or frequent maintenance. They need “fit and forget” solutions — installed properly once, then performing reliably for decades.
Facilities Managers: What You Need to Know
If you’re planning roofline upgrades, gutter replacements or addressing water ingress issues in schools or colleges, here’s what we understand about education sector requirements:
Operational constraints — We work around your term-time schedule, coordinate with ongoing school operations and respect safeguarding requirements throughout. All team members working on education sites are DBS checked.
Technical capability — From standard residential-scale systems to 300x300mm commercial box gutters, we have long-standing relationships with manufacturers and installation experience for education facilities.
Quality standards — These systems need to last decades, not years. We install to specifications that deliver long-term performance with minimal maintenance intervention.
Programme delivery — Whether it’s summer holiday installation, after-hours working or phased term-time programmes, we understand the timelines education projects demand.
Whole-site coordination — Many roofline projects are part of larger refurbishment schemes. We coordinate effectively with main contractors, other trades, and facilities management teams.
Realistic maintenance expectations — We don’t oversell. If something needs periodic maintenance, we’ll tell you. If it’s genuinely low-maintenance, you can rely on that claim.
Let’s Discuss Your School or College Project
Nursery, primary and secondary schools, sixth forms, FE colleges, universities — if you need roofline systems that combine appropriate capacity with long-term, low-maintenance performance, get in touch.
Call us on 01457 371676 or visit rainmen.co.uk to discuss your requirements.
Rainmen: Over 20 years keeping buildings dry — from individual homes to schools across the North West.
